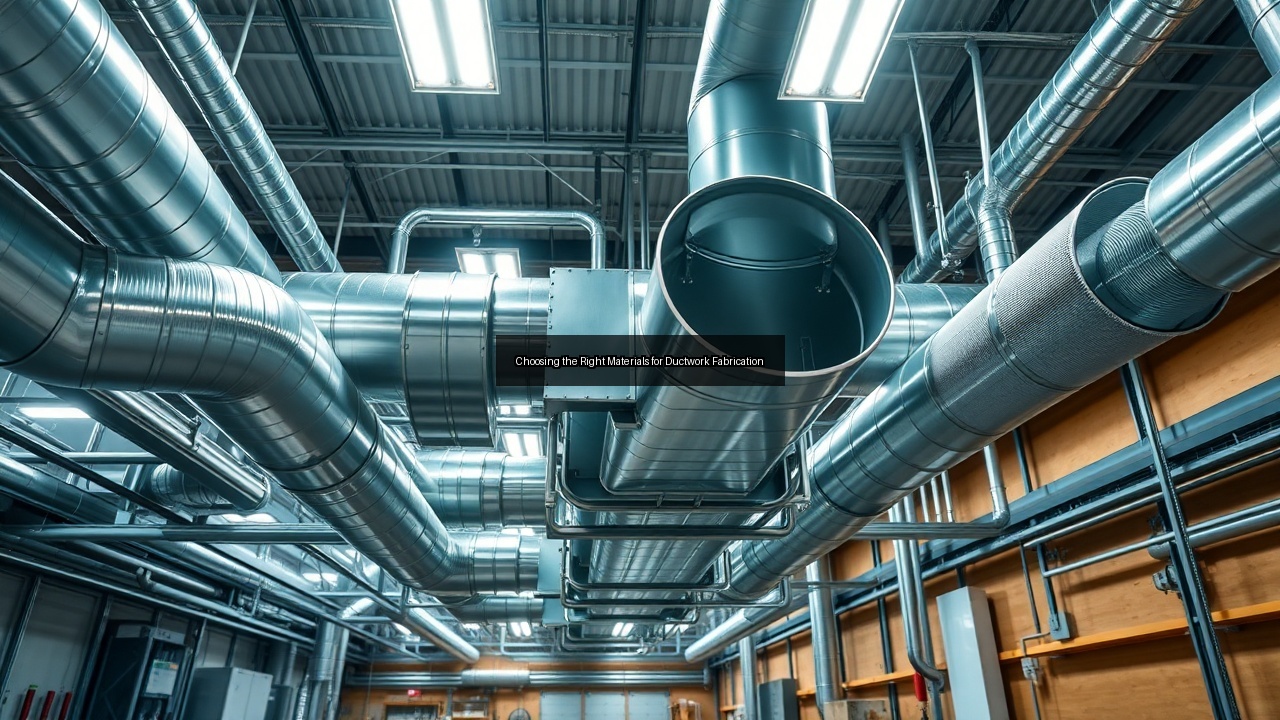

Choosing the Right Materials for Ductwork Fabrication

fabrication process duct systems air duct duct fabrication manufacturing

Understanding Ductwork Materials

Types of Materials for Duct Fabrication

Choosing the right materials for ductwork fabrication involves understanding the various options available. Common materials include galvanized steel, aluminum, fiberglass, and flexible plastic. Galvanized steel stands out for its robustness and durability, making it ideal for high-pressure systems. Aluminum offers a lightweight alternative with excellent resistance to corrosion, often used in commercial applications. Fiberglass ductwork provides thermal insulation, reducing energy loss and enhancing HVAC efficiency, while flexible plastic ducts are easy to install and adjust, primarily used in residential settings. Each of these materials serves distinct purposes, suited to specific environments and requirements in duct systems.

Pros and Cons of Common Duct Materials

Each duct material has its advantages and disadvantages. Galvanized steel, while strong and long-lasting, can be heavy and susceptible to rust if not properly coated. Aluminum, although lighter and resistant to corrosion, can be more expensive and less durable under high pressures. Fiberglass ductwork excels in thermal insulation and sound attenuation, yet it may not withstand physical impacts as well as metal options. Flexible plastic ducts are low-cost and easy to install, but they can be less effective in maintaining air quality and can degrade over time. Understanding these pros and cons helps in choosing materials that align with specific needs in ductwork fabrication.

Impact of Material Choice on Airflow Efficiency

The material selected for duct fabrication significantly influences airflow efficiency. Smooth surfaces, like those found in galvanized steel or aluminum, allow air to travel freely, reducing friction and enhancing system performance. In contrast, rough or poorly designed duct materials can create turbulence, leading to increased energy consumption and decreased airflow. The right material also minimizes leaks, which can waste conditioned air and result in higher utility bills. Properly designed and fabricated ducts ensure optimal airflow, directly impacting the overall efficiency of HVAC systems. Thus, selecting appropriate duct materials is crucial for maintaining effective and efficient air movement throughout buildings.

The Ductwork Fabrication Process

Key Steps in Duct Manufacturing

The ductwork fabrication process involves several key steps to ensure quality and functionality. Initially, designers gather information regarding the HVAC system requirements, including airflow needs and the layout of the space. Using this data, a detailed duct design is created. This blueprint guides the material selection and cutting processes. Technicians then cut and shape the materials accordingly, often employing advanced machinery for precision. After fabrication, the ducts undergo a quality check to ensure they meet specified standards. Finally, the finished product is prepared for installation, ensuring a seamless integration into the HVAC system. Each step in the manufacturing process is vital to achieving high-performance duct systems.

Utilizing Fabrication Services

Leveraging professional duct fabrication services can streamline the process and enhance the quality of the final product. Specialized fabricators possess advanced equipment and expertise, ensuring precision in cutting, shaping, and assembling duct systems. These services can handle larger projects efficiently, providing custom solutions tailored to specific HVAC requirements. Additionally, professional fabricators often have access to high-quality materials that may not be readily available to DIY enthusiasts. Using fabrication services not only saves time but also guarantees that the ductwork complies with industry standards and regulations, ultimately leading to better performance and longevity of the HVAC systems.

Tools and Technologies in Duct Fabrication

Modern ductwork fabrication employs a variety of tools and technologies to enhance efficiency and accuracy. Computer Numerical Control (CNC) machines allow for precise cutting and shaping of duct materials, reducing waste and ensuring uniformity. Plasma cutting systems provide high-quality edges, while shears and brakes assist in bending and forming ducts into the desired shapes. Additionally, software solutions enable designers to model duct systems and perform airflow calculations. These technologies not only improve the manufacturing process but also contribute to the overall performance of HVAC systems by ensuring that the ducts are fabricated to the highest standards.

Optimizing Duct Design for HVAC Systems

Calculating Duct Length and Size

Properly calculating duct length and size is crucial for optimizing airflow within HVAC systems. An oversized duct can lead to inefficient airflow, while an undersized duct restricts air movement, causing strain on the HVAC system. To determine the right dimensions, use a duct calculator that factors in airflow requirements, the layout of the building, and the specific HVAC system in place. This calculation ensures that air ducts are appropriately sized to deliver the desired airflow effectively. Accurate sizing also contributes to energy efficiency, reducing operational costs while maintaining comfortable indoor environments.

Navigating Duct Systems for Better Airflow

Designing duct systems requires careful navigation to ensure optimal airflow throughout the building. Straight runs minimize resistance and enhance efficiency, while bends and turns should be kept to a minimum. When designing duct layouts, consider the location of air returns and supply vents to facilitate smooth air movement. Utilizing larger ducts for main runs and progressively smaller ducts for branches can ensure balanced airflow. Additionally, incorporating dampers allows for controlling airflow in different areas, leading to better temperature regulation. A well-navigated duct system fosters efficient operation of HVAC systems, enhancing overall performance and comfort within the space.

Common Mistakes in Duct Fabrication

Several common mistakes can occur during duct fabrication, potentially compromising system efficiency. Failing to account for proper duct sizing often leads to airflow issues, resulting in poor HVAC performance. Additionally, inadequate sealing of duct joints can cause leaks, wasting conditioned air and increasing energy costs. Neglecting to insulate ducts in unconditioned spaces can lead to energy loss and temperature fluctuations. Improperly placed bends or turns can create turbulence, further hindering airflow. Avoiding these mistakes requires thorough planning, accurate measurements, and adherence to industry standards throughout the ductwork fabrication process.

Choosing the Right Ductwork for Your Needs

Factors to Consider When Selecting Ducts

When selecting ductwork, several factors must be considered to ensure compatibility with your HVAC system. First, evaluate the size of your space and the expected airflow requirements. The duct material plays a crucial role as well; consider factors such as durability, insulation properties, and resistance to corrosion. Additionally, the type of HVAC system in use may dictate the appropriate duct design and configuration. Lastly, budget constraints will influence material choices and fabrication services. Taking these factors into account helps in selecting ducts that provide optimal performance and efficiency, tailoring solutions to specific needs.

Comparing Ductwork Systems

Comparing different ductwork systems can help in making an informed decision tailored to your specific needs. Traditional rigid duct systems, made from sheet metal, can provide superior airflow and durability but may require more space and higher installation costs. In contrast, flexible duct systems are easier to install and adjust, making them suitable for tight spaces but may compromise airflow efficiency. Additionally, consider hybrid systems that combine rigid and flexible ducts for a balanced approach. Each system has its unique benefits and drawbacks, so evaluating them based on your requirements will lead to better HVAC performance and indoor comfort.

Consulting with Professionals for Ductwork Solutions

Consulting with HVAC professionals is invaluable when choosing the right ductwork solutions. Experts can assess your specific needs, evaluate existing systems, and recommend the most suitable materials and designs. They bring in-depth knowledge of local building codes and industry standards, ensuring compliance and enhancing system performance. Moreover, professionals can provide insights into the latest technologies and materials in ductwork fabrication, helping you make informed decisions. Investing time in consultation can save money in the long run by preventing costly mistakes and improving the efficiency of your HVAC system, ensuring a comfortable environment throughout the year.
